Smart Air Quality Monitor
Created with Pixso.

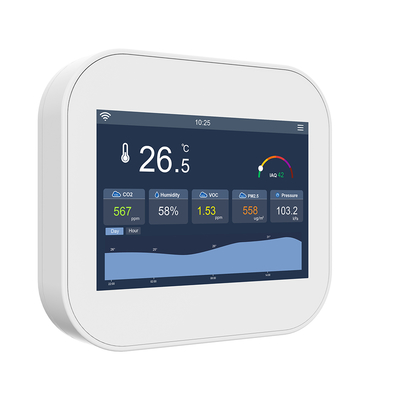

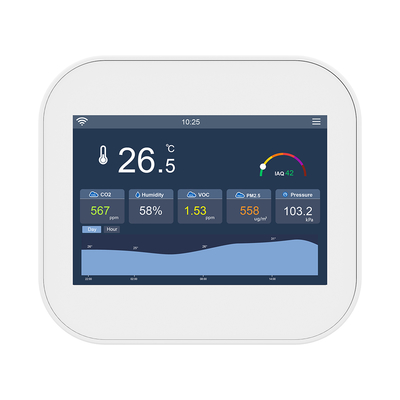

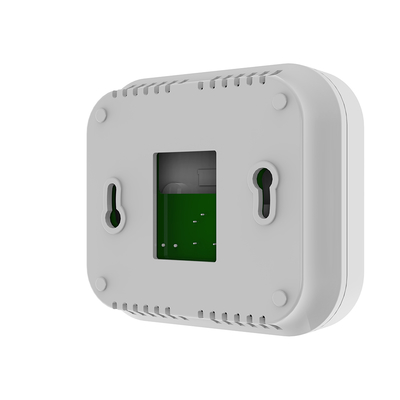

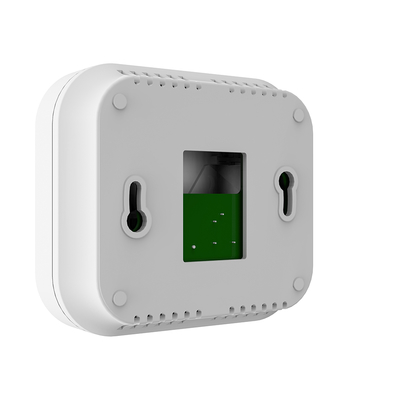

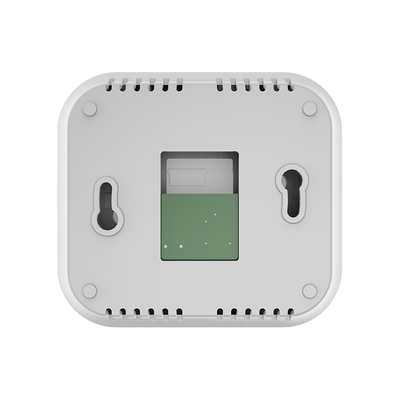

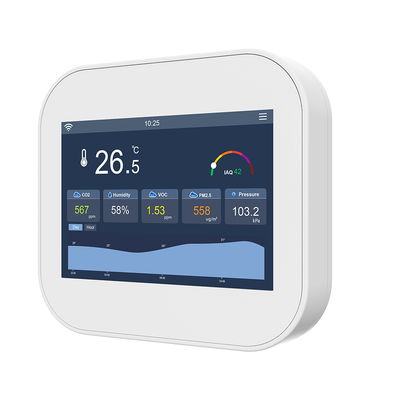

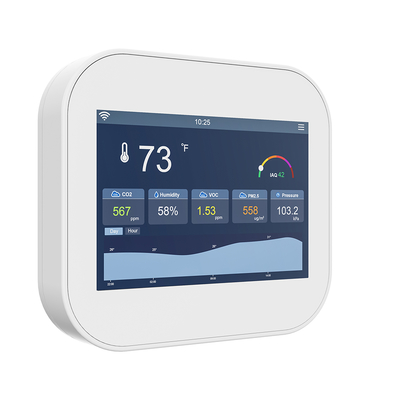

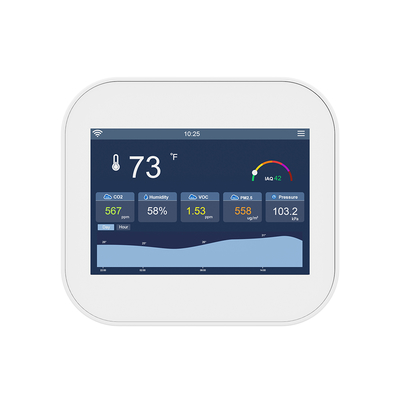

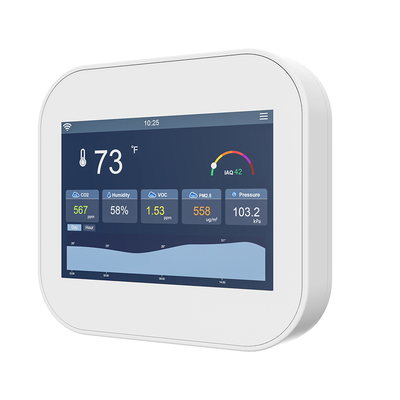

Touchscreen Indoor Smart Air Quality Monitor Title Optimization: Highlight Tech & Scene Relevance:CH60

Touchscreen Indoor Smart Air Quality Monitor Title Optimization: Highlight Tech & Scene Relevance:CH60

Nama merek: GZAIR
Nomor Model: CH60
Moq: 10
Price: $29 - $169
Ketentuan Pembayaran: , D/A, D/P, T/T, Western Union, Moneygram
Kemampuan Penyediaan: 1000 buah per bulan
Informasi Rinci
Tempat asal:
Cina
Sertifikasi:
CE, RoHS, FCC
Document:
Komunikasi:
WiFi-MQTT, MODBUS TCP Lorawan (Opsi) BACNET MS/TP, IP (Opsi) MODBUS RTU/TCP (Opsi)
Protokal Data:
Konfigurasi Perangkat MQTT Menggunakan HTTP Unduh Pembaruan OTA melalui HTTP
Ndir waktu seumur hidup:
15 tahun
Konsumsi daya siaga:
≤0.5 w
Kemasan rincian:
530*365*265mm/karton
Menyediakan kemampuan:
1000 buah per bulan
Deskripsi produk

Touchscreen Smart Indoor Air Quality Sensor with WiFi, RS485 & LoRaWan Integration

Take full control of your indoor environment with the Touchscreen Smart Indoor Air Quality Sensor, designed for real-time precision monitoring and seamless integration into modern control systems. Equipped with a vivid color touchscreen and multi-protocol support — including WiFi, RS485 (Modbus), and LoRaWAN — this intelligent sensor delivers reliable, continuous data to help you maintain healthier air across a wide range of spaces.
Perfect for smart buildings, offices, schools, and industrial facilities, this device monitors CO₂, PM2.5, VOCs, Pressure, temperature, and humidity using high-accuracy sensors. The interactive touchscreen makes it easy to view live readings, set thresholds, and track environmental trends at a glance — while flexible connectivity ensures effortless integration into both local and cloud-based platforms.
Key Features:
Responsive Touchscreen Display: Real-time visualization of air quality data with intuitive navigation
Multi-Protocol Connectivity: Supports WiFi, RS485 (Modbus RTU), and LoRaWAN for flexible deployment
6-in-1 Environmental Monitoring: Accurately tracks CO₂, PM2.5, VOCs, Pressure, temperature, and humidity
Custom Alerts & Thresholds: Instant on-screen notifications and remote alerts for poor air quality events
Data Logging & Reporting: Local storage and export capabilities for long-term tracking and compliance
Robust Integration: Compatible with smart home systems, HVAC, BMS, SCADA, and remote dashboards
Energy-Efficient Design: Low-power operation suitable for continuous monitoring in any setting
Ideal Applications:
Commercial & residential smart buildings
Offices, classrooms, and libraries
Healthcare and wellness facilities
Manufacturing & warehouse environments
Remote monitoring sites via LoRaWAN

Power Supply 24VAC
Display 320x480 pixels color TFT Capacitive touch
LoRaWAN 868mHz/923mHZ/915mHZ
WiFi IEEE 802.11b/g/n-2.4ghz
BACnet MSTP/IP
Modbus RTU/TCP
Security WPA/WPA2
Operating temperature 1°C-85°C
Sensors Co2: 0-5000ppm(±30ppm +3%MV)
Temperature:-10°C-70°C,(0.5 C 25 C)
Humidity:0-100%,±3% VOC: 0-60.000 ppb
Particulate Matter (PM1.5,PM2.5 PM4PM10): 4 KB0-100 μg/m3(±10μg/m3),100-1000(±10%)
Pressure: 50 to 115 kPa ±1 kPa
Communication WiFi-MQTT, modbus TCP LoRaWan(Option)
BACnet MS/TP,IP(Option) Modbus RTU/TCP(Option)
Data protocals MQTT
Device Configuration Using HTTP Download OTA Updates Via HTTP
NDIR life time 15 Years
Standby power consumption ≤0.5 W
Display dimensions 76.5X52 mm(W/H)
Dimensions(W/H/D) 96*86*32.5(mm)
Weight ≤200g
Enclosure rating IP 21
Product material PC+ ABS plastic
